KONE TRANSITMASTER™ 165 TRAVELATOR

A travelator, often called an autowalk or a moving walkway, is the ideal flat escalator solution for people flow management in the most demanding environments.

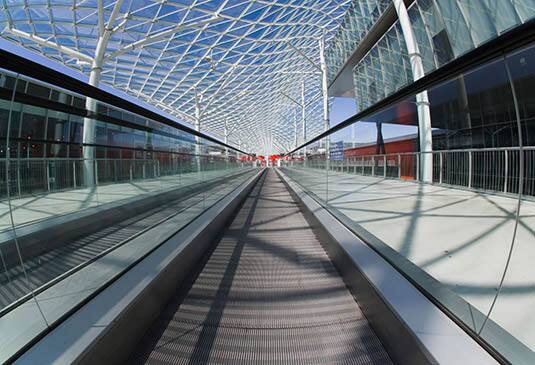

img_escalators-transitmaster165-carousel-1

KONE Travelator Details

Description

The KONE TransitMaster™ 165 is a heavy-duty autowalk primarily targeted towards the infrastructure segment with demanding traffic conditions, such as airports, railways as well as stadiums and other transit centers.

Equipment Specifications

Operational environment: indoor, semi-outdoor
Speed: 0.75, 0.65, 0.5 m/s; 0.4 m/s with inverter
Inclination: 0-6º
Pallet width: 1000, 1200, 1400 mm
Vertical rise: up to 100 m

Travelator Safety

Safety is the starting point for every KONE solution. TransitMaster™ 165 conforms to all local and international safety codes.
We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.

KONE Tools and Downloads

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator & Autowalk Planning guide

Our easy-to-understand guide gives you all the information you need when planning an escalator or autowalk solution, including guidance on building regulations and safety codes.

KONE TransitMaster™ 165 horizontal autowalk

This guide details the options and planning dimensions for the KONE TransitMaster 165 horizontal autowalk, which is designed for transport hubs such as airports and railroad stations.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

KONE solutions for airports

Our solutions for the unique demands of airport environments help manage the flow of people and goods into and through the airport safely, reliably, and efficiently.

More tools and downloads

Travelator Options and Highlights

TRAVELATOR ECO-EFFICIENCY

Eco-efficient operation can save energy by slowing down or stopping the autowalk when it is not in use or when traffic is low
Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
Reduced autowalk speed of 0.4m/s saves energy depending on passenger traffic
The lubrication-free step chain saves oil, reduces chain wear, and decreases fire risk

TRAVELATOR SAFETY

In addition to the standard safety features, we offer optional safety features including:

New traffic signalization solutions and colored step demarcations for extra visual guidance
Halogen-free, fire-resistant wiring
Seismic movement options
Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems

Find out more about safety at KONE

TRAVELATOR DESIGN

High quality visual design for the best possible user experience:

Innovative and attractive lighting solutions that also improve passenger guidance and safety
Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

KONE ESCALATOR & AUTOWALK PLANNING GUIDE

Our easy-to-understand planning guide gives you all the information you need when planning an escalator or walking escalator solution, including guidance on building planning regulations and property safety codes.

Product Name	Type	Segment	Maximum Rise	Speed	Inclination	KONE TransVario Direct Drive Available	24/7 Connected Services Available	Energy- Efficiency Class
KONE TravelMaster 110	Escalator	Commercial, retail, hotel, office, multi-use, stadium, medical	13m	0.5 m/s	30°, 35°		Yes	A+++
KONE TravelMaster 115	Inclined autowalk	Commercial, retail, hotel, office, multi-use, stadium, medical	7m	0.5 m/s	10°, 12°		Yes	A+++
KONE TransitMaster 120	Escalator	Infrastructure	20m	0.5, 0.65, 0.75 m/s	27.3°, 30°, 35°		Yes	A+++
KONE TransitMaster 140	Escalator	Infrastructure	35m	0.5, 0.65, 0.75 m/s	27.3°, 30°		Yes	A+++
KONE TransitMaster 165	Horizontal Autowalk	Infrastructure	100m	0.5, 0.65, 0.75 m/s	0-6°		Yes	A+++
